Experience the future of urban mobility with the SHOK Fusion, a revolutionary hybrid that combines the best features of a kick scooter and a fat tire electric bike. Designed to excel where others fall short, the SHOK Fusion embodies innovation, accessibility, and versatility in one sleek package. Imagine the Cadillac of kick scooters, featuring air ride suspension and oversized tires that effortlessly tackle varied terrain from campgrounds to cottage paths, city streets to snow.

Key Features:

• Hybrid Design: The SHOK Fusion merges the sit-stand kick scooter style with the robustness of a 20-inch fat tire electric bike. It offers the agility and ease of access of a low-platform kick scooter while boasting the terrain-conquering capabilities of a fat tire e-bike.
• Air Ride Suspension: Equipped with air ride suspension, the SHOK Fusion ensures a smooth and comfortable ride, absorbing bumps and vibrations whether you're cruising city streets or exploring off-road trails.
• Versatile Performance: Navigate with ease through diverse environments thanks to the Fusion's impressive ground clearance and sturdy build. It's designed to handle rough terrain yet maintains the nimble handling of a kick scooter.
• Powerful Motor and Advanced Battery: Featuring a robust 500W rear hub motor delivering 85N.m of torque, the SHOK Fusion powers through challenging terrain effortlessly. The top-mounted lithium-ion battery offers a unique design and maximum water resistance that balances weight distribution for improved stability both on and off roads.
• Advanced Riding Technology: The Fusion features more advanced waterproofing throughout, ensuring reliability in various weather conditions. Enjoy flexibility with 5 levels of speed control.
• Compact and Portable: Despite its robust features, the Fusion retains a compact and portable design, making it ideal for storage in small spaces or transportation in RVs and vehicles. With adjustable handlebars and no pedals to increase its footprint, the Fusion occupies a remarkably small horizontal silhouette while delivering high performance and versatility.
• Premium Build Quality: Constructed from lightweight yet sturdy aluminum alloy, the frame of the SHOK Fusion is designed to withstand the demands of off-road riding while maintaining agility and maneuverability.
• Integrated LCD Display: Monitor your speed, distance, battery level, and assist level at a glance with the sleek LCD display mounted on the handlebars. Easily adjust between modes to customize your riding experience.
• Responsive Disc Brakes: Equipped with front and rear Tektro disc brakes, the SHOK Fusion delivers reliable stopping power in all weather conditions, ensuring safety and control on descents.
• Enhanced Safety and Visibility: Navigate confidently with a high-end front light featuring automatic light sensing, ensuring visibility in low-light conditions.



  Technical Specifications:

  Electrical

  • Motor & Rear Wheel Assembly: 48V, 500W electric motor with hall sensor / motor armature sensor. High torque 20x4.0 profile fat motor with 135mm drop out
  • Charger 48V (54.6V output), 2A (2000mA), DC2.1 port, Lithium Ion, UL/ULC Certified
  • Controller: 48V, 20A, intelligent vector sine wave
  • Electric Thumb Throttle Unit: 22mm/0.87in, Wuxing 130X universal 12-72V (12V, 24V, 36V, 48V, 60V, 72V), waterproof rated
  • LCD display / instrument panel: Left mount design, EN06 Profile. VA segment screen type, vivid under sunlight. 2.0 inch screen size. Supported UART communication type and USB Type-A charge port. Multiple functions - Speed/Distance/Power/Time Display/Headlight, On-Off/Walk, Mode/Settings. Wide working temperature range -20C to +60C. IP65 waterproof rating
  • Battery Management System (BMS), 48V, 30A, continuous, for lithium ion battery
  • Battery: Lithium Ion 48V, 10.4Ah, 500Wh battery, DC2.1 port profile. IR-5 top mount profile profile
  • Front LED light / Headlight (Head Light): Site-Lite brand, C4 model
  • Bus cable: 1T5, 1000mm base cable with 4 way split. Total length from split is 100mm for display, 120mm for front brakes, 120mm for rear brakes, and 250mm for throttle



  Mechanical

  • Handlebars: Promax 6061 aluminum alloy, HB-B201 710L profile, 710mm length
  • Handlebar Stem: Steering column tube, PROMAX brand, Al-Alloy 6061, BA-900 profile
  • Front fork suspension: Aluminum alloy 6061 lockable shock absorbers, WB800-MLO 247L profile, 247mm length
  • Headset bearings: Steering column bearing assembly, H148H 28.6mm x 44mm x 30mm profile
  • Hand brake lever / handlebar mounted brake handle: PC/ABS and aluminum Alloy, KB-039 profile, IP54/IP65 waterproof rating
  • Brake disc (disk): 180mm diameter
  • Rear brake cable: 1950mm
  • Front brake cable: 950mm
  • Kick stand (kickstand): 122mm HRA-15 profile
  • Front Fender: Front mudguard wheel cover, aluminum alloy with fender brace
  • Rear Fender: Rear mudguard wheel cover, aluminum alloy with fender brace
  • Hand Grips: Silicone handlebar grip set, ZN-037 profile
  • Tires: All-season, all-weather, all-terrain Innova brand 20x4.0 E-bike / Fat Bike / Fat Tire / Bicycle (Mountain Bike) tires
  • Innertubes: Innova brand 20x4 E-bike / Fat Bike / Fat Tire / Bicycle (Mountain Bike) inner tubes (innertubes)
  • Optional: Rear aluminum alloy carrier / rack

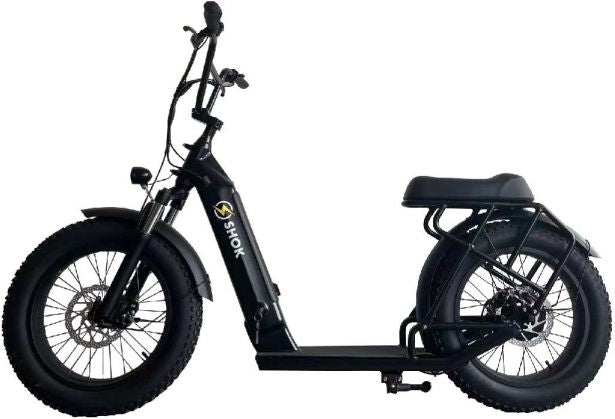

  • Optional: Seat



  Model Parameters

  • Max Load Capacity: 220 lbs (100 kg)
  • Max Speed: Up to 20 mph (32 km/h)
  • Range: Up to 40 miles (64 km) per charge, depending on terrain and rider weight
  • Charging Time: 4-6 hours
  • Weight: 23.5kg (51.7lbs)
