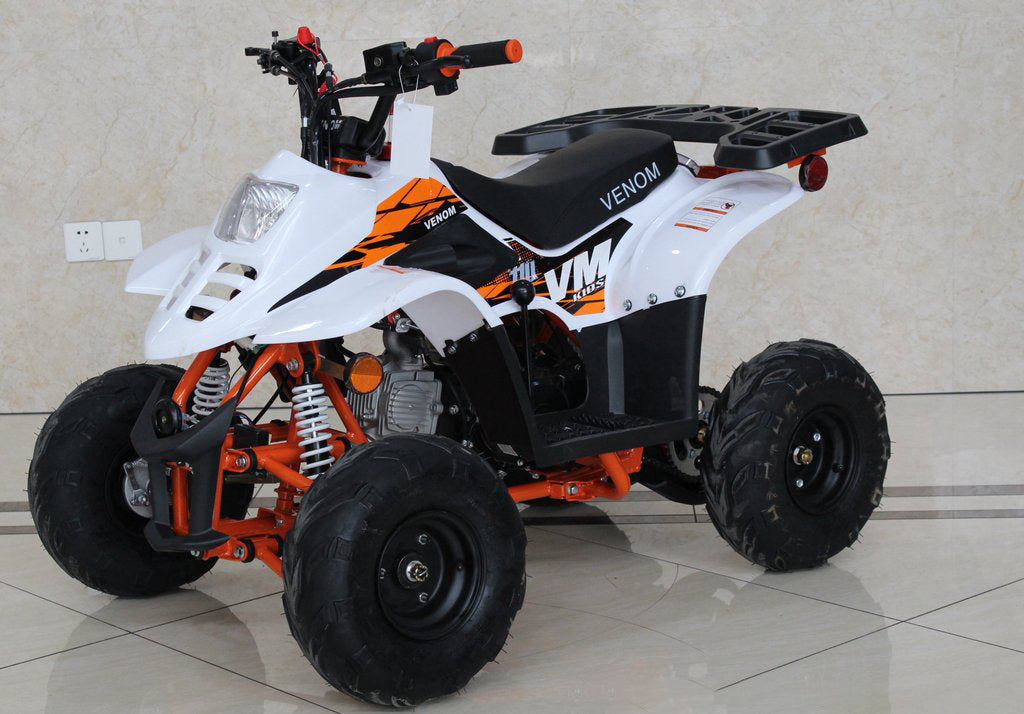

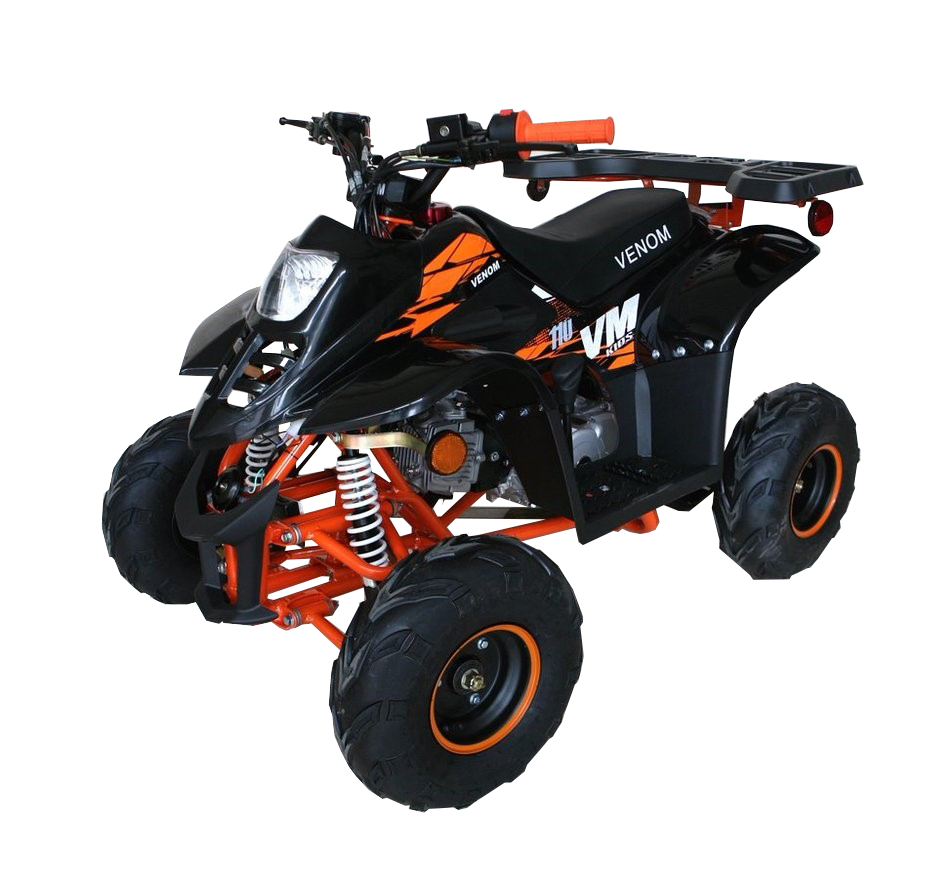

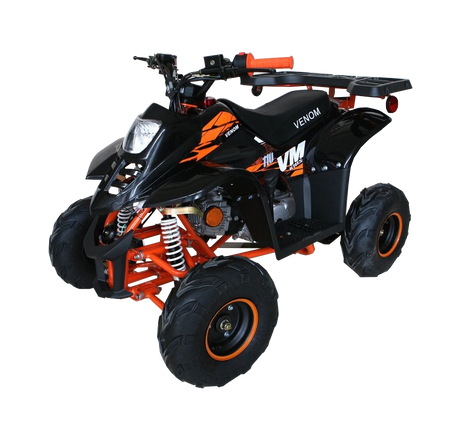

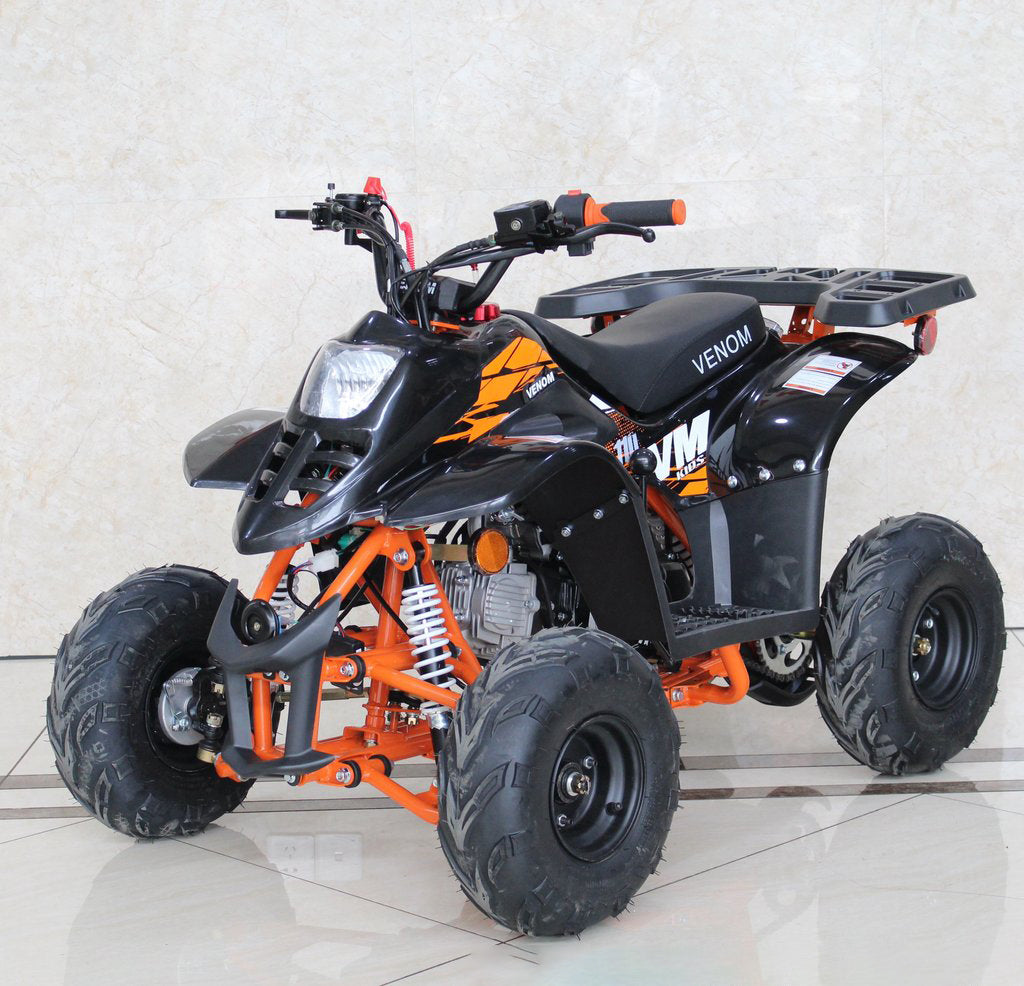

Venom Mini Madix 110CC
Description
Specifications *
- Model: MINI MADIX 110
- Engine: 110cc, 4 Stroke, Air-cooled
- Remote Starter and Kill Switch
- Transmission: Automatic Chain Transmission + Reverse
- Cylinder: Single Cylinder
- Carburetor: PZ19
- Air Filter: Dry Air Filter Net
- Spark Plug: A7TC
- Max Speed: 45 km/h
- Start: Electric
- Final Drive: Axle Shaft
- Battery: 12V/5AH
- Engine Oil: 0.7L
- Suspension Front: Double Swing Arm, Oil dampers
- Suspension Rear: Single Swing Arm, Oil dampers
- Shock Absorber Front: Double
- Shock Absorber Rear: Single
- Brakes Front: Drum Brake
- Brakes Rear: Disc Brake
- Brake Distance: 7m/30km/h
- Tires Front: 145/70-6
- Tires Rear: 145/70-6
- Seat Height: 25"
- Seat to Boot Pegs: 14.5"
- Wheel Base: 34"
- Back of seat to handlebars: 23"
- Handle bars to ground: 34"
- Handle Bar to Handle Bar: 27"
- Dimensions Assembled: 50" x 33" x 34"
- Ground Weight: 85 kg
- Turning Radius: 2000mm
- Tank Capacity: 1.5L
* - PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE
