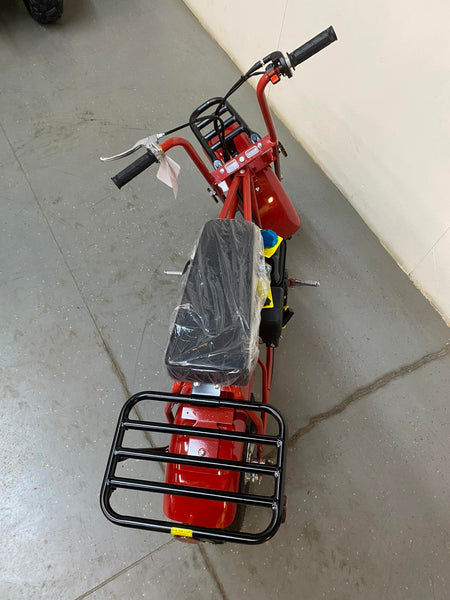

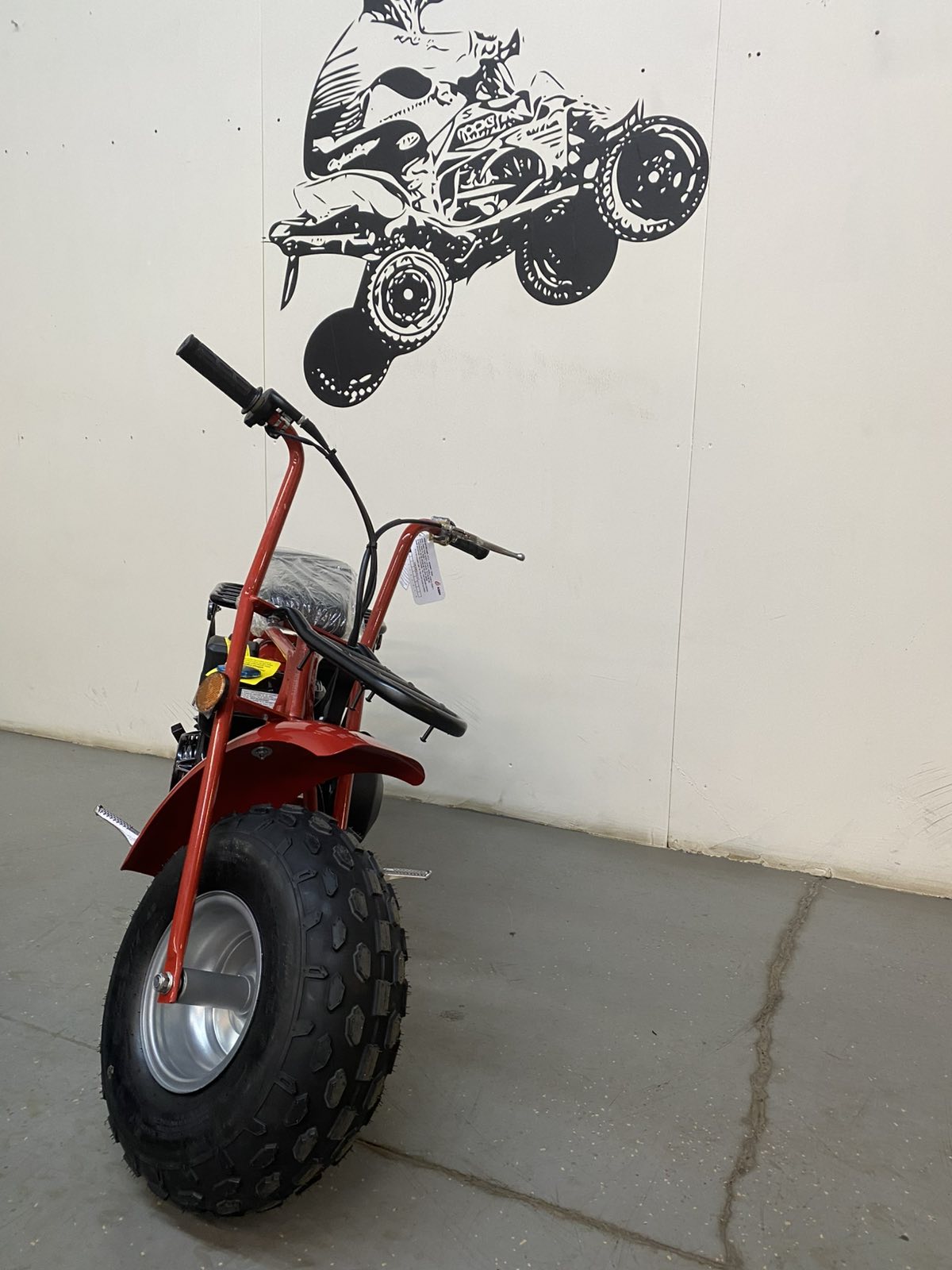

Viper HS 200 Mini Bike

Only 3 left
(0)
$1,299.00

Contact Us

Phone: (780) 488-4949
Email: sales@atvedmonton.com


Price Transparency
MSRP  $999
Assembly & PDI $300
Final Price (without Tax)  $1,299 (CAD)

Specifications
Engine
• Displacement: 196cc
• Starting: Recoil Cord
• Spark Plug Type: CHDY - F7TC
• Cooling: Air Cooled
• Ignition Type: T.C.I
• Cylinder Head Configuration: OHV
• Number of Cylinders: Single
• Combustion Cycle: 4-Stroke
• Bore & Stroke: 68mm x 54mm
• Compression Ratio: 8.5:1
• Carburetor: KERUIDI
• Rated Power: 3.8kW @ 3600 RPM
• Rated Torque: 11Nm @ 2500 RPM
• Top Speed: 20 mph (32 km/h)

Transmission
• Drive System Type: Chain Drive
• Gear Ratio: 10:1
• Clutch: Centrifugal Clutch

Suspension
• Front Type: Low Pressure Tires
• Rear Type: Low Pressure Tires

Braking
• Rear Brakes: Drum

Tires
• Front Tire Size: AT19x7-8
• Rear Tire Size: AT19x7-8

Dimensions & Weights
• Length: 57 in. (1450 mm)
• Height: 26.5 in. (680 mm)
• Width: 38 in. (960 mm)
• Wheelbase: 42 in. (1050 mm)
• Vehicle Weight: 121 lbs (55 kg)
• Weight Capacity: 200 lbs (91 kg)
• Ground Clearance: 6.5 in. (165 mm)

Fuel
• Gas Tank Capacity: 0.95 gal (3.6 L)
• Fuel Type: Unleaded Gasoline, 90 Octane or Higher

Oil
• Oil Capacity: 0.63 qt (0.6 L)
• Oil Type: SAE 10W-30
